DRESDEN GLASS

▶ Starting today, let us have beautiful sunshine.

DRESDEN GLASS developed an energy-saving core technologie called "NF ceramic nano energy-saving film". It is designed for tropical and subtropical climates. Its efficiency is better than traditional glass materials, and it is more energy-saving, environmentally and safer.


In response to case needs, we also provide consulting services, including product introductions, price comparisons, etc.
Welcome to contact us!

Excellent energy saving plan

▶ Test Report

Item\Conditions

Air conditioning temperature(℃)

Operation hours

5mm Transparent glass

26

10 hours
(08:00~18:00)

DRESDEN GLASS (5mm+NF+5mm)


If you want to know more, please contact us

Energy-saving glass comparison

Item
DRESDEN GLASS
Low-e glass
Laminated glass
Remark
Thickness
11mm
28mm
11mm
5mm glass
Window slot width
Small
Large
Small

Security
Better
Poor
Better

Laminated glass will not fall and cause damage.

Radiant heat barrier
Better
Poor
Poor

UV
<1%
10%
10% or less
Comparison of same grade glass
Sound insulation
36 dB
33 dB
36 dB
5mm glass
Insulation durability
Longer
Shorter
Shorter

DRESDEN GLASS has passed the QUV test and has long-lasting thermal insulation properties.

Oxidation failure
Will not oxidize
Will oxidize Maybe DRESDEN GLASS uses nano-ceramic materials, no oxidation problem.
Other heat-insulating glass uses metal coating, which will cause oxidation failure if it comes in contact with air and moisture.
Light pollution
Less
High
Less
The visible light reflectance of DRESDEN GLASS is about 6-8%, and the visible light reflectance of other insulating glass is about 10% or more.
Warm indoor
Focus on heat dissipation
Better
Poor

Price
Medium
Depends on specifications
Low and medium

Low-end products will sacrifice product performance.
DRESDEN GLASS strives to strike a balance between performance and price.

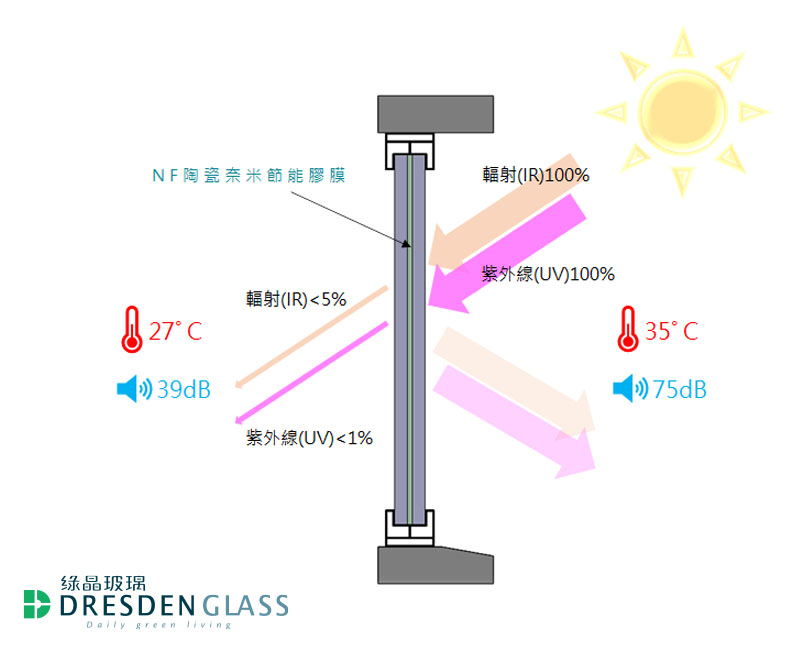

Principle of Thermal Insulation

For tropical and subtropical regions, the biggest problem we have to solve is the direct heat radiation of the sun.



DRESDEN GLASS uses the exclusive patent "NF ceramic nano energy-saving film" to glue two pieces of glass together what is energy-saving glued glass.


  • Ceramic nano thermal insulation material: can directly block 99% ultraviolet (UV) and 95% infrared (IR)
  • Ultra-low reflectivity of ceramic materials: reflectivity is only 6.5% (Green buildings need reflectivity below 20%)
  • The main body is a glued structure, and its lighting performance is better than that of multi-layer glass that requires an air layer.
  • The NF film achieves the purpose of rapid heat dissipation through the window frame.

Experts in solving energy-saving problems

1. More suitable for various window frames

DRESDEN GLASS chooses a glued structure, because there is no air layer, the window frame selection is more flexible.

Type

Structure
(The same thickness of glass)

Thickness

Common window frame width

Conclusion

DRESDEN GLASS

5mm+NF+5mm

11mm

22mm

Safe construction scope

Low-e glass

5mm+12A+5mm

22mm

There is no construction space, it is recommended to use window frames with a width of 28mm or more.
(Most imports)

It is recommended to reserve 2-3mm before and after the width of the window frame to facilitate the firmness of the glass.

  • The difference in the width of the window frame also allows us to help save the cost of the window frame.
  • DRESDEN GLASS has no front and back problems, effectively avoiding problems such as installation errors due to communication.

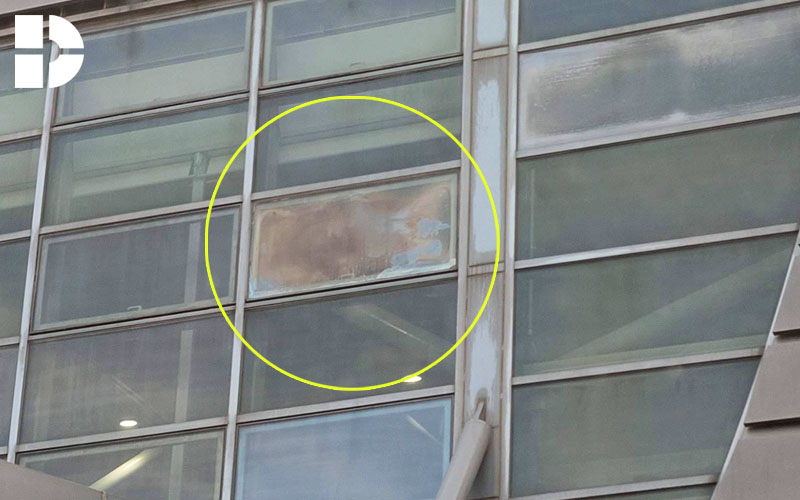

2. Completely solve the problem of oxidation failure


Tropical and subtropical areas are mostly hot and humid.
Energy-saving glass with metal coating is easy to oxidize and fail due to moisture, causing whitening.

DRESDEN GLASS uses nano-ceramic materials, no oxidation problem.
Extremely strong weather resistance is more suitable for various environments.

3. Energy-saving performance can be effectively maintained for more than 20 years

DRESDEN GLASS passed QUV test-2000 hours.
Energy-saving performance can be effectively maintained for more than 20 years.

4. Safe and soundproof

The multi-layer energy-saving glass does not have a glued layer, and there is still a danger of smashing or cutting people when the glass is broken.

DRESDEN GLASS is a glued structure, and the glass is directly glued to the glue film when it is broken, which greatly increases the safety.

DRESDEN GLASS has better sound insulation and makes the indoor space more comfortable and comfortable.

View more cases

Testing report


  • Pass QUV test-2000 hours
    Energy-saving performance can be effectively maintained for more than 20 years
  • Pass the SVHC product evaluation report
    No heavy metals or toxic substances remain
  • Passed CNS glass specification

Product

L-Series

L-Series

H-Series

H-Series
